O General VRF Systems – Overview & Benefits
Overview of VRF Systems
Variable Refrigerant Flow (VRF) air conditioning systems provide efficient, scalable climate control by modulating refrigerant flow to multiple indoor units. O General, a Fujitsu General brand with decades of HVAC expertise, pioneered VRF technology to deliver precise cooling and heating solutions for buildings of all sizes. Unlike conventional chillers or split ACs, a VRF system intelligently adjusts compressor speeds and refrigerant volume to match each zone’s demand, resulting in superior energy savings and comfort. O General’s VRF series was developed leveraging the company’s long-term air-conditioning know-how and has been continually refined over the past 14+ years to meet diverse market needs.
Today, these VRF systems are trusted globally and especially in the Middle East for their inverter-driven efficiency, high performance in extreme climates, and centralized control capabilities.
Key Benefits:
Energy Efficiency:
All-DC inverter technology and variable capacity control ensure high EER/COP performance, adjusting output precisely to avoid energy waste. The system achieves seasonal energy savings by running only at the required capacity for each zone.
Zoning & Comfort:
A single VRF network supports many indoor units, allowing individualized temperature control in each room or zone. This means a hotel, office, or villa can maintain different comfort settings simultaneously, all managed by one system. Precise refrigerant flow control holds room temperatures steady within ± 0.5°C of the setpoint for exceptional comfort.
High Ambient Reliability:
O General VRF is engineered for the Middle East’s harsh summers, cooling is possible even at outdoor temperatures up to 52°C. Robust tropicalized components (heat exchangers, PCB cooling, anti-corrosion coatings) ensure reliable operation in desert climates.
Flexible Application:
VRF is suitable for a wide range of buildings from large residences and mid-size offices to high-rise towers and hospitals. Modular outdoor units and long piping lengths allow creative installation (e.g. outdoor units on rooftops or balconies with indoor units spread across 10+ floors). The system’s design flexibility meets various needs, whether concentrating outdoor units on a roof or distributing them per floor.
O General’s Expertise:
Emphasize O General’s track record, e.g. a joint venture production hub in Dubai/India (EGPL) with over 750 dealers and 65,000 HP of VRF installed across the region. This demonstrates the brand’s experience, local presence, and support network, giving customers confidence in after-sales service and parts availability.
Title: O General VRF Systems – Efficient Cooling Solutions for Any Building
Meta Description: Discover Fujitsu General’s O General VRF air conditioning systems – energy-efficient, high-performance cooling & heating for villas, offices & high-rises, even in extreme climates. Learn how VRF technology saves energy while maximizing comfort.
Technology & Features
VRF Technology: Efficiency, Reliability & Comfort Features
Energy Efficiency:
O General VRFs are engineered for top efficiency
The VRF systems leverage all-inverter technology. not just the compressor, but also the fan motors, to maximize part-load efficiency. By continuously adjusting output to match cooling demand, the system avoids the on/off cycling losses of traditional units.
Key efficiency innovations include:
- DC Twin Rotary Compressors: These compressors achieve high EER at full load and even higher IPLV (seasonal efficiency) at partial load. The twin rotary design reduces vibration and maintains smooth operation even at low speeds, contributing to significant energy savings across the yeart.
- 4-Face Heat Exchanger: O General’s outdoor units use a four-sided heat exchanger coil, increasing surface area for heat exchange. This means more efficient heat removal (in cooling mode) and heat absorption (in heating), which improves performance without needing larger units.
- Sine-Wave Inverter Control: The inverter drives are designed with a sine-wave PWM control that minimizes harmonic distortion and reduces motor losses. This high-quality power control further boosts efficiency and lowers waste heat in the electronics.
- Connectable Capacity up to 150%: The ability to connect indoor units totaling up to 150% of the outdoor capacity allows diversity in operation. not all rooms call for full cooling simultaneously. This means a smaller outdoor unit can effectively cool a larger area by intelligently redistributing capacity, saving energy when some zones are at partial load.
Reliability & Durability
Many features are aimed at ensuring reliable operation even under tough conditions and over a long lifespan:
Tropical Climate Design:
As mentioned, these systems handle 52°C ambient heat for cooling. High-capacity compressors and reinforced cooling of critical electronics (for instance, extra heat sinks on the PCB and special refrigerant subcooling circuits) keep the system running in extreme heat where other AC systems might shut down. This is crucial for Middle Eastern summers.
Anti-Corrosion Protections:
All outdoor units have blue-fin or equivalent anti-corrosion coated coils and galvanized, powder-coated cabinets to withstand coastal and desert environments. Even small components like screws and hinges are treated for corrosion resistance. This significantly extends the unit’s life in high-humidity or salty air locations.
Backup and Safety Functions:
The VRF logic includes backup operation modes – if one compressor in a multi-compressor system fails, the remaining compressor(s) can take over some of the load to provide partial cooling, so the AC isn’t completely down. Also, units perform automatic oil return and equalization cycles to keep compressors healthy. The system continuously self-diagnoses over 50 fault conditions and can display error codes for quick maintenance. Safety controls (high pressure cut-outs, freeze protection, etc.) are built-in to prevent damage in abnormal conditions.
Quality Manufacturing & Testing:
We can note that these VRF units are manufactured by Fujitsu General with strict quality standards (ISO 9001/14001 certified factories. Each unit undergoes testing, and the tropical spec models are tested in high-temperature chambers to verify performance at 50+°C. The design also accounts for power fluctuation tolerance (important in some regions) and includes phase protection for the compressors.
Comfort & Intelligent Control:
- Precise Temperature Control: Thanks to electronic expansion valves and inverter control, the system can adjust refrigerant flow to each indoor unit in real time. This eliminates the temperature swings typical of on/off systems. Occupants experience stable, consistent comfort. The fine control translates to only ±0.5 °C variation from the set temperature in steady state, keeping rooms uniformly comfortable even as loads change (like when people enter or sun load increases).
- Quiet Operation: Multiple design elements ensure quiet indoor and outdoor units. Indoor fan coils have multi-speed fans and insulated cabinets; some cassette units even have a “quiet mode” dropping sound levels for nighttime use. The outdoor units use large diameter fans with a special blade design modeled via CFD to minimize turbulence, and DC fan motors that ramp smoothly without the abrupt noise of AC motors. Typical sound levels are low, making VRF suitable even in dense residential areas or for nighttime operation in villas.

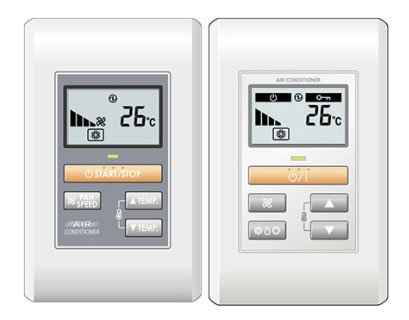

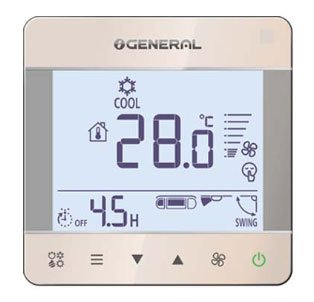

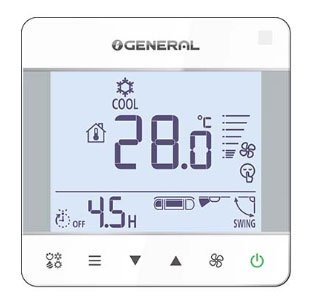

- Advanced Controls for Comfort: The integration of smart controllers (as detailed in the Controllers section) means users have easy control over their environment. For instance, the system can do area scheduling, offices can pre-cool specific zones before staff arrive, or in a villa, bedrooms can automatically go to a comfort setting at night. Features like “auto restart” after power failure ensure the AC resumes to last settings (important for user comfort especially if an outage happens at night). Some models also have human sensor options to modulate cooling when nobody is in the room (enhancing both comfort and efficiency).
Design Flexibility
“Installation-oriented features that benefit the design and installation process”
Long Piping Lengths:
VRF systems allow extensive refrigerant piping runs, for example, O General systems support total pipe lengths on the order of several hundred meters, and height differences of over 50 m between outdoor and farthest indoor. This means the outdoor unit can be placed far from the occupied spaces (like on a roof or in a service area), and still reliably serve many floors. It gives architects freedom to hide equipment without worrying about performance loss.

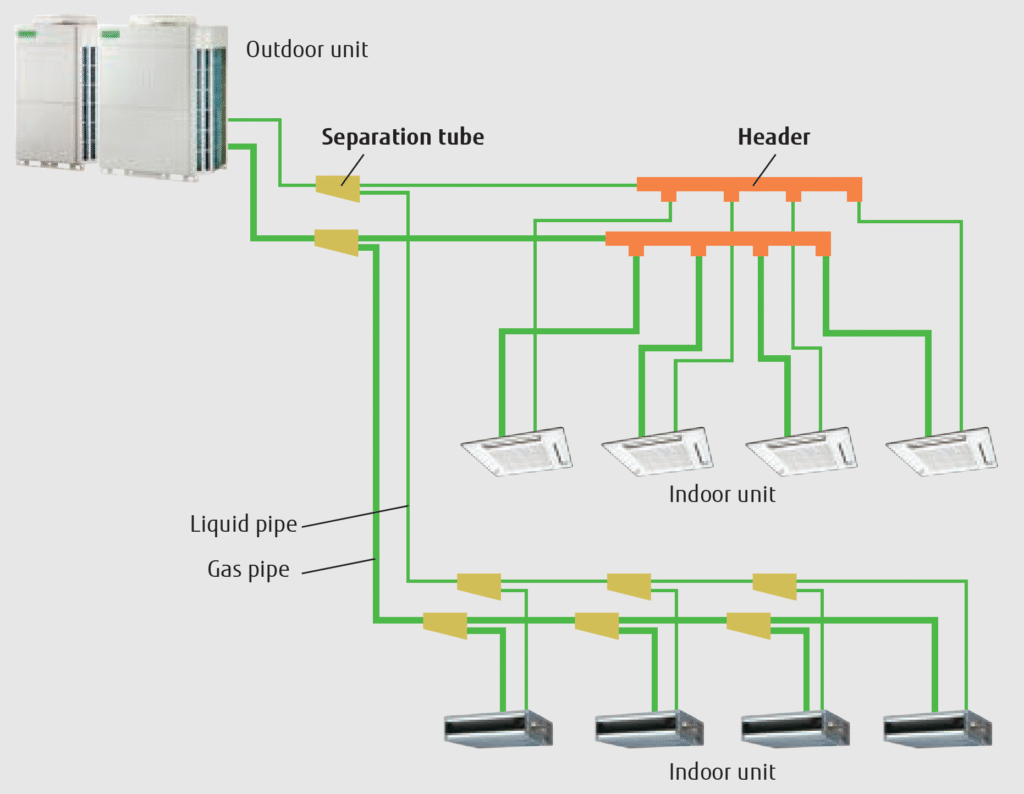

Branching and Modular Installation:
The refrigerant network can branch in a tree structure using either Y-joints or branch selector boxes (for heat recovery systems), which simplifies routing compared to running individual lines to each unit. The ability to combine up to 3 outdoor modules into one system and mix-match indoor unit types provides a “Lego-like” modularity – installers can incrementally add units to meet capacity needs. This modular approach also means easier transportation and lifting of equipment (several smaller units instead of one huge unit).
Adaptability:
O General VRF can adapt to various building types. for instance, by using a DX AHU kit, the system can even connect to a third-party Air Handling Unit or fan coil unit to supply conditioned fresh air. This is useful for ventilating large halls or integrating with existing air distribution systems. The VRF controls can manage such kits so that the AHU operates like another indoor unit on the system. There are also optional kits like condensate pumps for cassette units, insulation for high-humidity environments, and filter boxes, enabling customization per project needs
Title: VRF Technology & Features – Inverter Efficiency, Comfort, Reliability
Meta Description: Learn about the cutting-edge technology in O General VRF systems: all-DC inverter drives, operation up to 52°C ambient, precise temperature control (±0.5°C), quiet operation, and flexible design with long piping runs.
Installation & Maintenance
Installation & Maintenance: Designing O General VRF Systems
Installation Flexibility
VRF systems require no large water pipes or centralized air ducts; instead, lightweight copper refrigerant piping is used to connect the outdoor and indoor units, offering great flexibility. O General VRF allows for extensive piping lengths and complex branching, which means installers can route pipes throughout a building with few constraints. For instance, the vertical separation between outdoor and indoor units can be very large (suitable for high-rises), and total pipe run can cover multiple floors without significant capacity loss.
Ease of Placement: Small footprint outdoor units and the ability to place modules in tandem make it easier to utilize rooftop or balcony space. No bulky chiller plant or cooling tower is needed, and minimal structural reinforcement is required for the lightweight outdoor units.
Simplified Refrigerant Wiring
All indoor units are connected by a simple communications bus (twisted pair) to the outdoor unit and controllers. O General uses a straightforward 2-wire communication link for indoor units and controllers, making the controls wiring akin to daisy-chaining thermostats rather than running separate cables to each unit. This reduces installation time and the chance of wiring errors. The system auto-addresses or identifies indoor units automatically in many cases, speeding up commissioning.
Commissioning Tools: Note if the VRF has a commissioning software or if the central controller can be used to setup the system (e.g., assigning indoor unit addresses, groups, etc.). Perhaps mention any auto commissioning mode where the system checks for proper refrigerant charge or opens all valves to distribute oil, etc., at startup.
Maintenance Features
Routine maintenance for VRF is limited mainly to cleaning filters on indoor units and periodic checks of the outdoor unit (fans, coils). O General VRF units incorporate self-diagnosis – error codes are displayed on wired controllers or central controllers, helping technicians quickly pinpoint issues. The system can be interfaced with a service software for deeper diagnostics, reading pressures and temperatures in the system in real-time.

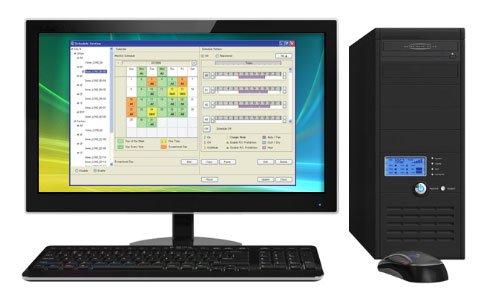

Remote Monitoring: Many central controllers or BMS integrations allow facility managers to get alerts if an issue arises (e.g., refrigerant leak detection, sensor faults). This proactive monitoring means issues can be addressed before they cause downtime.
Service Accessibility: O General outdoor units are designed with service in mind, components like PCB boards and inverter modules are accessible from front panels, and the layout provides space for technicians to attach gauges and perform vacuuming/refrigerant charging. Indoor units often have easily removable blower fan sections and drain pans for cleaning. Also, since VRF uses modular components, if one indoor unit needs service, it can be done independently without shutting down the whole system (except during refrigerant recovery if needed).
Training and Support
It’s worth noting that O General (through Fujitsu General’s network) offers training for authorized installers and has a support line for technical queries. The Middle East distributors maintain spare parts inventory and support centers in major cities (e.g., Dubai, Abu Dhabi, Ajman) to assist with any maintenance needs. This ensures that customers are not left on their own post-installation, a critical aspect for large projects.
Documentation: All products come with detailed installation manuals and wiring diagrams. It’s recommended that installers follow the best practices in the installation manual, such as proper pipe insulation (to prevent condensation), pressure testing and evacuation, and observing the correct refrigerant charge as per system pipe lengths. Our Downloads section provides these manuals for reference.
Title: VRF Installation & Maintenance: Guide for O General Systems
Meta Description: Plan and maintain your VRF system with confidence, guidelines on installing O General VRF (piping, wiring, placement) and maintenance tips for longevity. Discover how easy it is to deploy and service VRF vs traditional systems.
Outdoor Units (VRF Outdoor Systems)
VRF Outdoor Units: O General J-Series & V-Series
O General VRF outdoor units serve as the heart of the system, driving refrigerant to all indoor units with inverter-driven compressors. The lineup covers a broad capacity range to suit different project scales:
J-Series
J-III Tropical Series VRF Outdoor Units
(Mini VRF) units are compact, single-module systems from ~4 HP up to 18 HP, ideal for large homes, retail shops, or small offices. They offer a slim design (some models under 1 meter tall) for easy placement, and can connect multiple indoor units of various types to one small outdoor unit.
V-Series
V-III Tropical Series VRF Outdoor Units
(Modular VRF) units are high-capacity systems ranging from 8 HP up to 54 HP in combined capacity, intended for mid to large buildingd. V-Series modules (8-18 HP each) can be combined (up to 3 units) to reach large capacities, while maintaining a relatively compact footprint. This gives designers the freedom to install sufficient capacity for an entire hotel or office block by grouping units.

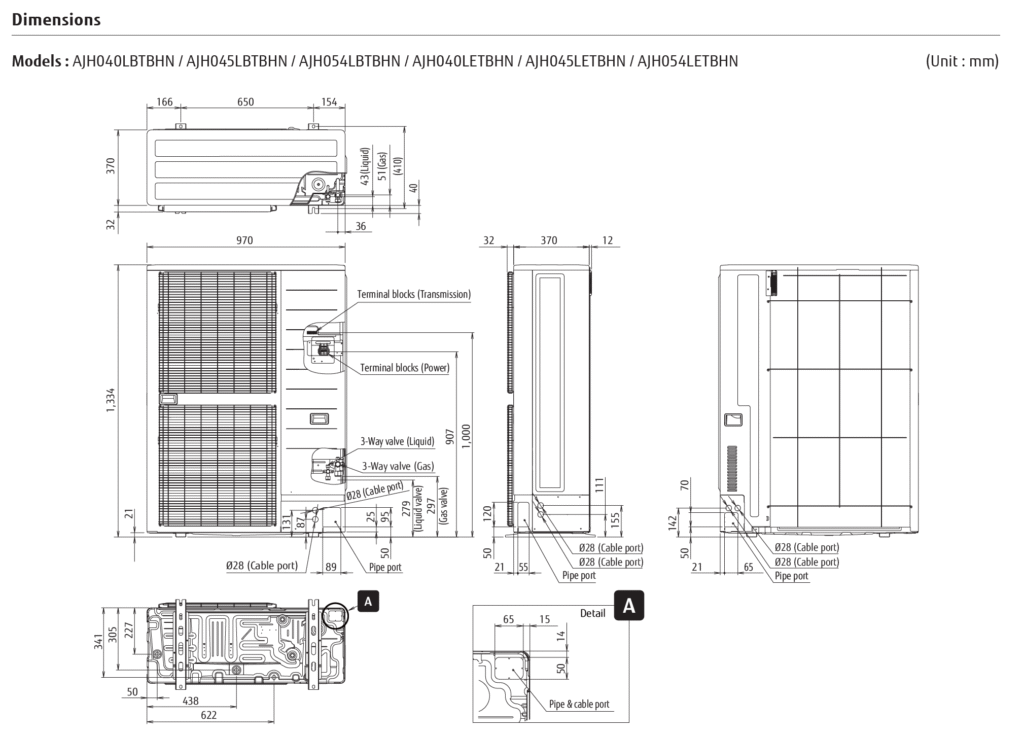

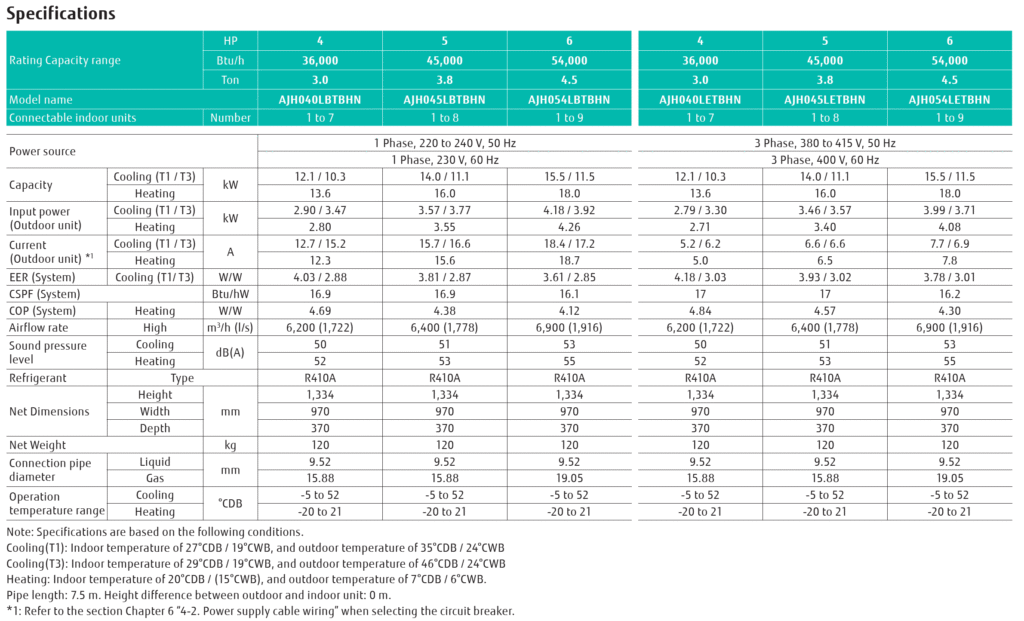

O General J-III Tropical Series VRF Outdoor Units
Engineered for Small-to-Medium Buildings in Harsh Climates
Core Advantages:
- Tropical Resilience: Reliable cooling at up to 52°C ambient temperatures with anti-corrosion blue fin components
- Energy Efficiency: Top-class COP/EER ratings (up to 5.01) via DC inverter compressors and optimized heat exchangers
- Space-Smart Design: Compact footprint fits balconies/rooftops while managing 180m total piping lengths
- Non-Stop Operation: Continuous cooling/heating during oil recovery mode
- Simplified Control: Connection check function verifies wiring/address setup instantly
Technical Highlights
3-Row Heat Exchanger:
8% higher efficiency vs. previous models
Dual-Sensor Temperature Control:
Built-in remote + indoor unit sensors
Error Diagnostics:
Stores last 16 error codes for quick troubleshooting
Refrigerant:
Eco-friendly R410A
Wiring:
2-wire simplified installation
Perfect For: Hotels, retail stores, offices, and mid-sized residential complexes in tropical regions.
Why Choose J-III Series?
Maintenance-friendly front access + modular scalability meets brutal climate demands.

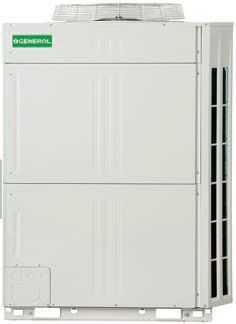

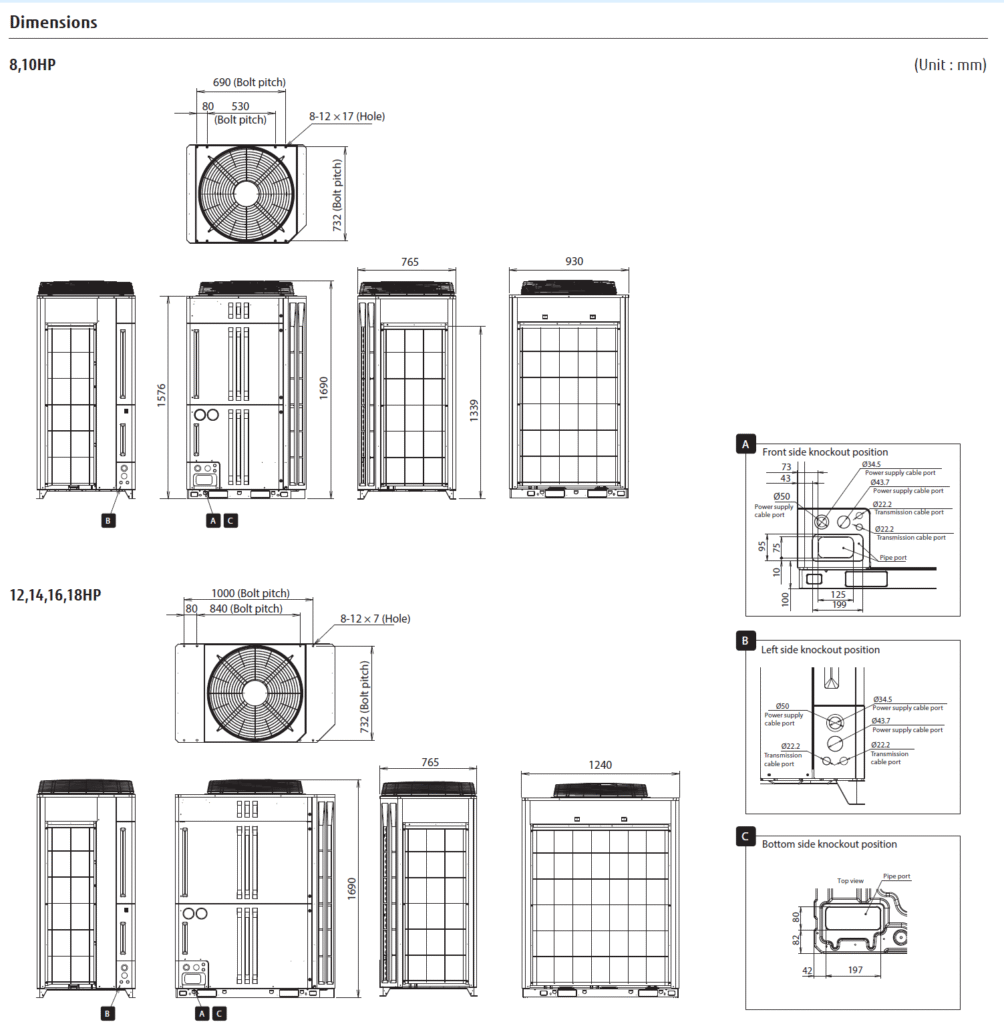

O General V-III Tropical Series VRF Outdoor Units
O General’s V-III Tropical Series VRF systems are expertly engineered for optimal performance in harsh tropical climates. These units provide superior cooling even at extreme temperatures up to 52°C, making them ideal for residential, commercial, and industrial applications.
Key Advantages:
- Superior Tropical Performance: Reliable cooling at ambient temperatures up to 52°C.
- Energy Efficient: Advanced inverter technology ensures maximum efficiency and reduced energy consumption.
- Enhanced Durability: Anti-corrosion-treated components ensure longevity in harsh environmental conditions.
- Flexible Installation: Modular design easily accommodates diverse installation requirements.
Comprehensive Product Line-Up

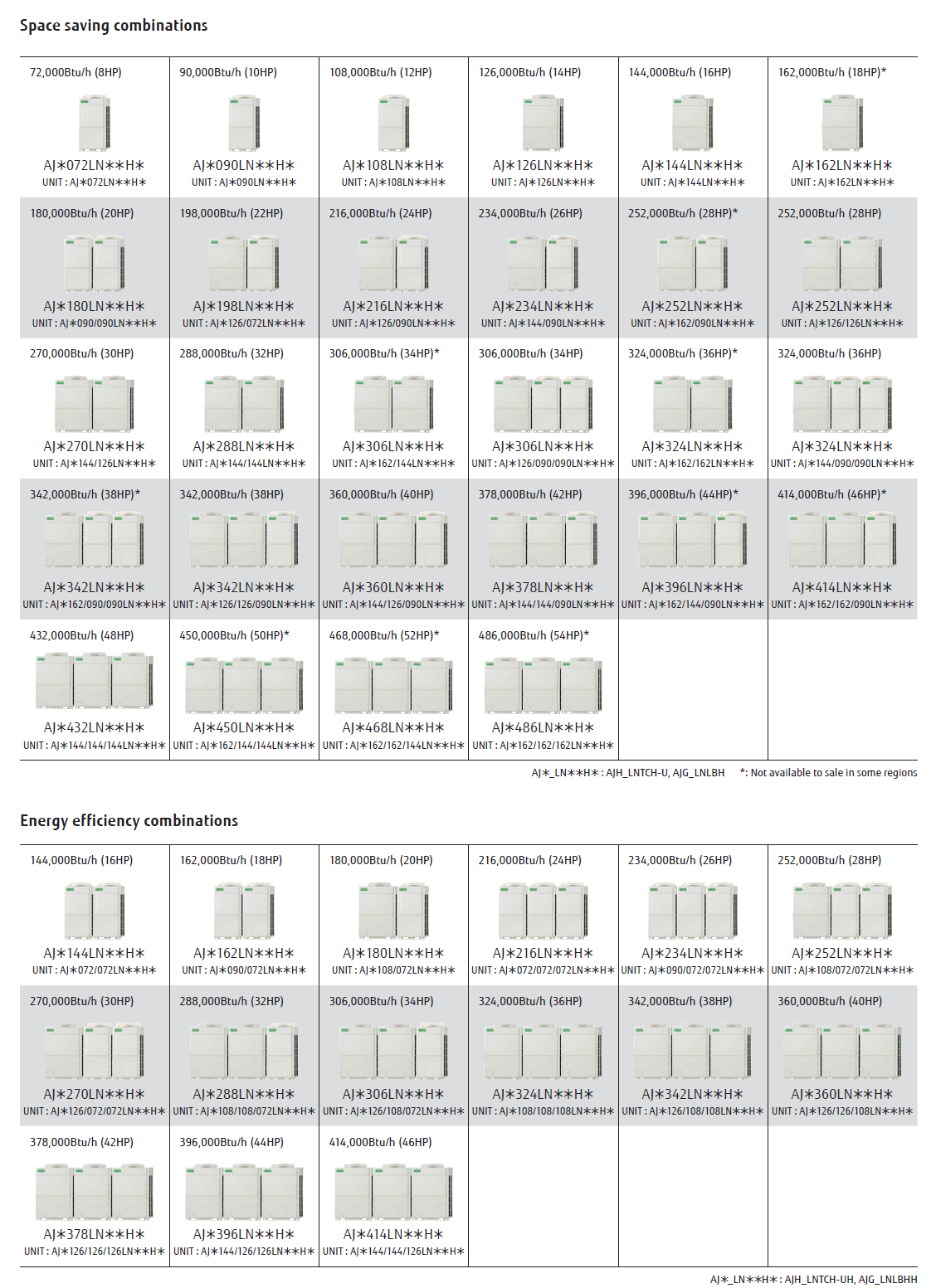

Space Saving Combinations
Technical Highlights
Advanced Compressor Technology
DC inverter-driven compressors provide precise temperature control and high efficiency.
Superior Durability
- Special anti-corrosion coating protects components from rust and salt damage.
- Robust design suitable for long-term outdoor usage in tropical climates.
Ease of Installation & Maintenance
- Front-access serviceability simplifies maintenance.
- Modular construction allows flexible and scalable installations.
Downloadable Resources
[V-III Tropical Series Brochure (PDF)]
[Detailed Technical Specifications (PDF)]
[Installation Manual (PDF)]
Call to Action
Discover why O General’s V-III Tropical Series is the preferred VRF solution for tropical climates. [Contact us today] for consultation, quotes, and expert installation.
SEO Meta Title: O General V-III Tropical Series VRF Outdoor Units | Efficient Tropical Cooling
Meta Description: Explore O General’s V-III Tropical Series VRF Outdoor Units designed for high efficiency in tropical climates, offering unmatched reliability and powerful cooling performance.
Primary Keywords
- O General VRF systems
- V-III Tropical Series
- Tropical VRF outdoor units
Secondary Keywords
- Energy-efficient VRF system
- Anti-corrosion VRF units
- Modular VRF systems
Recommended Alt Text for Images
- “O General VRF V-III Tropical Series outdoor unit”
- “Tropical climate VRF outdoor installation”
- “Anti-corrosion components VRF outdoor unit”
Notable Features:
Capacity & Combinations:
Wide range: The tropical VRF series offers outdoor models from 8 HP to 54 HP total, in 2 HP increments. Up to three units can operate as one system (e.g. three 18 HP units combined for 54 HP) to accommodate large loads. A single VRF system can support up to 63 indoor units on one refrigerant network, enabling dozens of rooms/zones per system.
High Ambient Performance:
Designed for GCC climates, these outdoor units maintain cooling output even in extreme heat. Cooling operation is guaranteed up to 52 °C ambient without tripping, and there is zero capacity de-rating at 43 °C (full capacity delivered at typical peak conditions). Large heat exchangers, sub-cooler circuits, and robust fans contribute to powerful cooling capacity even at high outdoor tempratures.
All-DC Inverter Technology:
Both series use DC inverter compressors (twin rotary type in smaller units, and scroll or twin rotary in larger units) that continuously modulate refrigerant flow. This results in high part-load efficiencies and quick response to cooling demand changes. The inverter compressor design and sine-wave DC control minimize energy loss and ensure smooth operation.
Quiet & Adaptable Operation:
The outdoor units are engineered for quiet performance large propeller fans with optimized blade design and DC fan motors reduce noise and vibration. In noise-sensitive areas or night operation, fans and compressors can ramp down to lower sound levels. Additionally, multiple outdoor units in a combined system can alternate (rotate) operation to balance run hours, and have backup capability if one module or compressor fails, the remaining module can continue partial cooling to avoid total downtime.
Compact, Slim Design:
The mini VRF J-Series units feature an especially compact chassis (e.g. ~998 mm height for 4-6 HP models) that doesn’t obstruct window sightlines, allowing installation on balconies or low rooftops. The larger V-Series units, while higher capacity, are designed with a slim depth (~480 mm for new 14-18 HP modules), meaning even high-capacity units can fit in space-constrained equipment yards or mechanical rooms.
Connectable Indoor Capacity:
Indoor unit connection ratios of up to 150% of the outdoor capacity are supported. This means the system can be designed with diversity not all rooms need peak cooling at the same time which adds flexibility in system design (common in hotels or mixed-use buildings).
Title: O General VRF Outdoor Units – High Capacity VRF (J-Series & V-Series)
Meta Description: Explore O General’s VRF outdoor units (J-Series mini VRF & V-Series modular VRF) with capacities up to 54 HP. Designed for high ambient 52°C conditions with inverter technology for maximum efficiency and reliability.
Indoor Unit Types
VRF Indoor Units: Product Range by Type
The indoor units are the visible part of the AC system inside each room. O General provides over 50 models across ~14 different indoor unit styles ensuring that for any room layout or decor, there’s a suitable unit available. Each indoor unit connects to the VRF network via refrigerant piping and offers quiet, efficient cooling and heating with independent control.
O General VRF Indoor Units – Cassette, Duct, Floor, Wall Mounted & More
VRF Indoor Units Category Range
Ceiling Cassette Units:
These compact units are recessed in the ceiling, delivering 360° airflow. 4-way cassettes (in various sizes) are ideal for offices, shops, and restaurants distributing air uniformly without wall obstructions. O General’s cassette lineup includes Compact Cassettes for small rooms and Slim or Large 4-way Cassettes for bigger areas, as well as a Circular Flow Cassette model which uses a round diffuser for even air distribution. Key features of cassette units are an elegant flush appearance, built-in drain pumps, and swing louvers to eliminate hot spots. (For example, a 4-way cassette unit ranging from ~2.2 kW to 14 kW capacity can be chosen depending on room size)
Ducted (Concealed) Units:
These units are hidden above false ceilings with only grilles visible, providing an invisible cooling solution. They connect to ductwork to distribute air to multiple vents. O General offers low-static pressure “mini duct” units for small rooms or short ducts, medium-static and high-static pressure duct units for larger spaces or longer duct runs requiring higher airflow pressure. There are also Slim Duct units that double as concealed floor units, useful for tight ceiling spaces. Ducted units are popular in villas, hotel suites, and offices where aesthetics are paramount they allow flexible placement of air outlets and very quiet operation (the fan is above the ceiling).
Floor Standing & Ceiling Suspended Units:
These versatile units can be either mounted low on a wall/floor or hung from the ceiling (known as Floor/Ceiling Convertible units). They blow air horizontally and are suited for open halls, classrooms, or spaces with no drop ceiling. O General’s floor/ceiling units provide installation flexibility for instance, in a conference room they might be ceiling-suspended, whereas in a residential lounge the same unit could be floor-mounted against a wall. They typically have oscillating louvers to cover a wide air distribution area.
Wall Mounted Units:
Similar in style to split-system wall ACs, these sleek wall-mounted units are ideal for smaller rooms, retrofits, or places without a drop-ceiling. They are light-weight and easy to install high on a wall. O General’s VRF wall units come with modern flat-panel designs and multi-speed fans for quiet comfort. They’re often used in bedrooms or offices where a quick install is needed. Capacities range from ~2 kW up to ~7 kW in this category, covering small to mid-size rooms.
Additionally, Dedicated Floor Standing units (vertical cabinet type) are available for applications like lobbies or corridors these stand on the floor and have front discharge, useful where ceiling installs aren’t possible.
Title: VRF Indoor Units – Cassette, Ducted, Wall & Floor AC | O General
Meta Description: Browse O General VRF indoor unit types: ceiling cassette AC, concealed ducted units, wall-mounted and floor-standing units. Find the perfect indoor unit design for any space with quiet, efficient cooling.
Each indoor unit page (e.g. Cassette, Duct, Wall Mount) will provide model-specific details and specs (capacity, dimensions, features) in a tabular format, along with images. For example, the Cassette Units page will list models like AUG series cassettes with their cooling capacities, and highlight features such as auto-swing louvers and fresh air intake options. We will use diagram images from the catalog (like airflow patterns or unit dimensional drawings) to help users visualize installation.
O General VRF Indoor Units – Cassette, Duct, Floor, Wall Mounted & More
SEO Meta Title
O General VRF Indoor Units | Complete Lineup of Cassette, Duct, Ceiling, Wall Types
SEO Meta Description
Explore the full range of O General VRF Indoor Units – cassette, duct, wall-mounted, floor/ceiling, and more. Discover models, specs, and energy-efficient features tailored for commercial and residential needs.
Introduction
O General VRF Indoor Units are engineered for performance, flexibility, and efficiency across various applications. From modern villas and commercial offices to hotel suites and retail showrooms, these indoor units offer smart air conditioning solutions that integrate seamlessly with O General’s outdoor VRF systems.
With categories like cassette, ducted, wall-mounted, and floor/ceiling types, every unit is designed for energy savings, silent operation, and ease of maintenance in even the most demanding environments.
Indoor Unit Categories
Cassette Type Indoor Units
Cassette-type indoor units are among the most popular VRF solutions from O General, offering unobtrusive ceiling-mounted cooling with uniform airflow distribution. These units are ideal for open-plan offices, retail environments, hotel lobbies, and premium residential spaces where aesthetics and performance are equally critical.
Designed to integrate into false ceilings, they provide 360-degree air discharge, low-noise operation, and easy maintenance access, making them a go-to choice for architects and HVAC designers.
Key Features:
- 360° directional airflow ensures even room temperature
- Sleek and low-profile panel designs
- Built-in drain pump for efficient condensate removal
- Quiet operation with low vibration
- Individual louver control for zone customization
- Compact models designed for limited ceiling space
- Optional fresh air intake
Product Types:
- 4-Way Cassette – Standard
- 4-Way Cassette – Compact
- Circular Flow Cassette
Product Lineup:
4-Way Cassette Type (Standard)
| Model | Nominal Capacity (kW) | BTU/h | Dimensions (W×D×H mm) |
|---|---|---|---|
| AUXA18GALH | 5.3 | 18,100 | 840×840×298 |
| AUXA24GALH | 7.1 | 24,200 | 840×840×298 |
| AUXA30GALH | 8.8 | 30,000 | 840×840×298 |
| AUXA36GALH | 10.6 | 36,200 | 840×840×298 |
| AUXA45GALH | 12.5 | 42,700 | 840×840×298 |
| AUXA54GALH | 15.0 | 51,200 | 840×840×298 |
4-Way Cassette Type – Compact
| Model | Nominal Capacity (kW) | BTU/h | Dimensions (W×D×H mm) |
|---|---|---|---|
| AUXA07GALH | 2.2 | 7,500 | 570×570×245 |
| AUXA09GALH | 2.8 | 9,600 | 570×570×245 |
| AUXA12GALH | 3.6 | 12,300 | 570×570×245 |
| AUXA14GALH | 4.0 | 13,600 | 570×570×245 |
| AUXA18GALH | 5.3 | 18,100 | 570×570×245 |
🔎 Note: Some model codes may be repeated across standard and compact lines with different dimensions and configurations. Check catalog footnotes for clarity.
Circular Flow Cassette Type
| Model | Nominal Capacity (kW) | BTU/h | Dimensions (W×D×H mm) |
|---|---|---|---|
| AUXB18GALH | 5.3 | 18,100 | 840×840×298 |
| AUXB24GALH | 7.1 | 24,200 | 840×840×298 |
| AUXB30GALH | 8.8 | 30,000 | 840×840×298 |
| AUXB36GALH | 10.6 | 36,200 | 840×840×298 |
| AUXB45GALH | 12.5 | 42,700 | 840×840×298 |
| AUXB54GALH | 15.0 | 51,200 | 840×840×298 |
Duct Type Indoor Units
Duct-type indoor units are the ideal solution for concealed air distribution across multiple zones. Designed for flexibility, these VRF units can be installed in false ceilings with horizontal or vertical duct routing, offering customizable airflow, static pressure adjustments, and silent operation.
O General offers a broad lineup, including slim ducts for tight ceiling spaces, and medium to high static pressure units for larger commercial environments like auditoriums, malls, and large office layouts.
Key Features:
- Ultra-slim models available for tight ceiling spaces (as low as 200 mm height)
- External static pressure control via wired remote
- Long duct connection capability for multi-room conditioning
- Energy-efficient fan motor with multiple speed options
- Quiet operation
- Anti-microbial filter (optional)
- Easy access for servicing
Product Types:
- Slim Duct (Low Static Pressure)
- Medium Static Pressure Duct
- High Static Pressure Duct
- Large Airflow Duct
Product Lineup:
Slim Duct Type (Low Static Pressure)
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX07GATH | 2.2 | 7,500 | 10 | 700×450×200 |
| ARX09GATH | 2.8 | 9,600 | 10 | 700×450×200 |
| ARX12GATH | 3.6 | 12,300 | 10 | 700×450×200 |
| ARX14GATH | 4.0 | 13,600 | 10 | 700×450×200 |
Medium Static Pressure Duct Type
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX18GATH | 5.3 | 18,100 | 50 | 850×500×235 |
| ARX24GATH | 7.1 | 24,200 | 50 | 850×500×235 |
| ARX30GATH | 8.8 | 30,000 | 50 | 1,050×600×250 |
| ARX36GATH | 10.6 | 36,200 | 50 | 1,100×650×270 |
High Static Pressure Duct Type
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX45GATH | 12.5 | 42,700 | 80 | 1,200×700×290 |
| ARX54GATH | 15.0 | 51,200 | 100 | 1,300×700×300 |
| ARX60GATH | 16.0 | 54,600 | 100 | 1,400×750×320 |
Large Airflow Duct Type
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX72GATH | 20.0 | 68,200 | 150 | 1,500×750×360 |
| ARX90GATH | 25.0 | 85,300 | 150 | 1,600×800×380 |
Floor/ Ceiling Convertible Indoor Units
O General’s Floor/Ceiling Convertible VRF indoor units offer a smart solution for areas where ceiling installation is restricted or floor-mounted flexibility is preferred. Designed for dual-mounting, they can be suspended from the ceiling or placed vertically on the floor, making them ideal for both modern apartments and large halls with limited ceiling cavities.
These units ensure optimal airflow, simplified maintenance, and quiet operation, making them a versatile choice for a range of interior layouts.
Key Features:
- Can be installed on the floor or suspended from the ceiling
- Powerful and uniform airflow with wide-angle distribution
- Flexible piping and drainage options
- Easy access to filters for cleaning
- Built-in drain pump (optional)
- Minimal intrusion into interior design
Product Lineup:
Convertible Floor/Ceiling Type (Single product class)
| Model | Nominal Capacity (kW) | BTU/h | Installation Type | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| AXY07GALH | 2.2 | 7,500 | Floor/Ceiling | 990×665×235 |
| AXY09GALH | 2.8 | 9,600 | Floor/Ceiling | 990×665×235 |
| AXY12GALH | 3.6 | 12,300 | Floor/Ceiling | 990×665×235 |
| AXY14GALH | 4.0 | 13,600 | Floor/Ceiling | 990×665×235 |
| AXY18GALH | 5.3 | 18,100 | Floor/Ceiling | 990×665×235 |
| AXY24GALH | 7.1 | 24,200 | Floor/Ceiling | 1,050×700×245 |
| AXY30GALH | 8.8 | 30,000 | Floor/Ceiling | 1,100×750×250 |
| AXY36GALH | 10.6 | 36,200 | Floor/Ceiling | 1,200×750×270 |
Wall-Mounted Indoor Units
Wall-mounted VRF indoor units from O General offer elegant aesthetics with high-performance cooling, ideal for residential bedrooms, executive cabins, classrooms, and compact commercial spaces. These units are designed for fast installation, easy maintenance, and seamless integration into modern interiors without compromising airflow comfort.
Their lightweight design and slim profile make them a preferred solution in retrofits and new builds alike, especially where ductwork or ceiling suspension isn’t feasible.
Key Features:
- Sleek, modern appearance blends with interior décor
- Optimized air distribution with wide-angle louvers
- Quiet operation with multiple fan speed settings
- Easy front panel access for filter cleaning
- Compatible with VRF outdoor systems and smart controls
- Energy-efficient inverter operation
- Auto restart and self-diagnosis functions
Product Lineup
Wall Mounted Type (with internal or external EEV compatibility)
| Model | Nominal Capacity (kW) | BTU/h | Dimensions (W×D×H mm) | EEV Type |
|---|---|---|---|---|
| ARW07GALH | 2.2 | 7,500 | 800×290×205 | External |
| ARW09GALH | 2.8 | 9,600 | 800×290×205 | External |
| ARW12GALH | 3.6 | 12,300 | 800×290×205 | External |
| ARW14GALH | 4.0 | 13,600 | 800×290×205 | External |
| ARW18GALH | 5.3 | 18,100 | 990×315×235 | External |
Concealed Ceiling Type Indoor Units
O General’s Concealed Ceiling VRF indoor units are purpose-built for discreet air conditioning where visual minimalism and architectural freedom are critical. These units are installed entirely above the ceiling with only the air outlets visible, making them ideal for luxury homes, hotels, offices, and conference facilities.
Available in compact, medium, and high static pressure options, they provide flexibility for duct length and layout while maintaining strong airflow and quiet performance.
Key Features:
- Fully concealed installation with no visual intrusion
- Wide static pressure range for long duct layouts
- Ultra-slim body (as low as 245 mm) for tight ceiling cavities
- External static pressure adjustable via controller
- Washable filter and easy service access
- Ideal for multi-zone climate control with ducted air distribution
Product Lineup
Compact Static Pressure Type
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX07GALH | 2.2 | 7,500 | 30 | 700×450×245 |
| ARX09GALH | 2.8 | 9,600 | 30 | 700×450×245 |
| ARX12GALH | 3.6 | 12,300 | 30 | 700×450×245 |
| ARX14GALH | 4.0 | 13,600 | 30 | 700×450×245 |
Medium Static Pressure Type
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX18GALH | 5.3 | 18,100 | 50 | 850×500×235 |
| ARX24GALH | 7.1 | 24,200 | 50 | 850×500×235 |
| ARX30GALH | 8.8 | 30,000 | 50 | 1,050×600×250 |
High Static Pressure Type
| Model | Nominal Capacity (kW) | BTU/h | Static Pressure (Pa) | Dimensions (W×D×H mm) |
|---|---|---|---|---|
| ARX36GALH | 10.6 | 36,200 | 80 | 1,100×650×270 |
| ARX45GALH | 12.5 | 42,700 | 100 | 1,200×700×290 |
| ARX54GALH | 15.0 | 51,200 | 100 | 1,300×700×300 |
📊 Comparative Overview of O General VRF Indoor Units
| Category | Mounting Type | Capacity Range (kW) | Key Benefits | Typical Applications |
|---|---|---|---|---|
| Cassette | Ceiling-recessed | 2.2 – 14.0 | 4-way airflow, uniform cooling, drain pump | Offices, showrooms, hotels |
| Duct (Slim–Large) | Concealed ceiling | 2.2 – 25.0 | Flexible duct layout, static pressure options | Villas, auditoriums, malls |
| Floor/Ceiling | Dual-position | 2.2 – 10.6 | Floor or ceiling install, strong airflow | Shops, meeting rooms, apartments |
| Wall Mounted | Wall-mounted | 2.2 – 5.3 | Compact, fast install, energy-saving | Bedrooms, classrooms, offices |
| Concealed Ceiling | Fully hidden | 2.2 – 15.0 | Minimal visual impact, adjustable pressure | Luxury homes, restaurants, suites |
Reliable Cooling • Energy-Smart • Slim Profile • Tropical-Ready up to 55 °C Get Your Free Quote
O’general’s advanced VRF control systems and controllers offer flexible solutions for individual and centralized control of air conditioning systems. Designed for comfort, efficiency, and ease of operation, these controllers suit various applications, from single rooms to extensive commercial buildings.
VRF Control System & Controller for Individual and Centralized Control
VRF Controls: Remotes, Central Controllers & BMS Integration
Title: VRF Controllers & BMS Solutions – Remote, Central & Smart Control
Meta Description: Manage your O General VRF with advanced controllers – from simple wired remotes to 7-inch touch panel central controllers. Integrate VRF with Building Management Systems via BACnet/LonWorks. Learn about control options.
→ For Individual Control
Individual Room Controllers
Wired Remote Controller
A wall-mounted controller connected by a simple 2-wire link. It offers a permanent user interface in each room with temperature display and advanced settings. O General’s wired remotes have a sleek, simple design to match modern interiors, and some models can even accept both wired and wireless inputs simultaneously. Typical features include weekly scheduling, energy save modes, and error code display for maintenance.

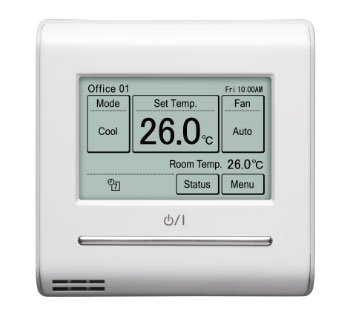

Wired Remote Controller (Touch Panel) – UTY-RNRGZ5
Key Features:
- High-Definition STN-LCD Touchscreen: Intuitive finger-touch operation for effortless control
- Advanced Scheduling: Built-in weekly/daily timer for ON/OFF, temperature, and mode adjustments
- Clear Visibility: Backlit display ensures easy operation in low-light conditions
- Multi-Unit Control: Manages up to 16 indoor units from a single controller
- Accurate Monitoring: Displays real-time room temperature readings
- Multilingual Support: 12 language options including English, Chinese, Spanish, and more
- Simple Installation: 2-wire type for easy setup and integration
Ideal For:
Homes, offices, and commercial spaces needing precise, user-friendly HVAC control.
Why Choose This Controller?
Combines modern touchscreen convenience with powerful scheduling features for complete climate management.

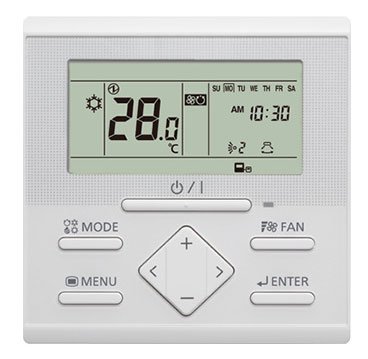

Wired Remote Controller – UTY-RLRG
Key Features:
- Flexible Timer Settings: Program ON/OFF schedules with daily or weekly timing options
- Precise Temperature Control: Built-in thermo sensor ensures accurate room climate adjustment
- Error Code Display: Immediate fault detection with clear error code notifications
- Error History Log: Stores last 16 error codes for quick troubleshooting
- Simple Installation: 2-wire setup for easy integration with your HVAC system
Ideal For:
Homes, offices, and commercial spaces in Dubai & UAE needing reliable climate control.
Why Choose This Controller?
A dependable wired solution offering smart scheduling, precise temperature management, and easy maintenance.

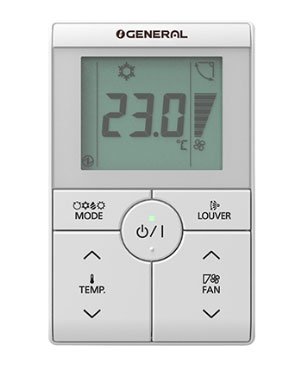

Simple Remote Controller – UTY-RSRG
Key Features:
- Compact & User-Friendly: Straightforward operation with essential HVAC controls
- Multi-Unit Control: Manages up to 16 indoor units simultaneously
- Ideal for Commercial Use: Perfect for hotels and offices with its no-fuss operation
- Sleek Design: Modern styling blends seamlessly with any interior decor
- Clear Display: Large LCD screen with white backlight for visibility in dark environments
- Simple Installation: 2-wire connection for hassle-free setup
Ideal For:
Hospitality spaces, office buildings, and residential use where simplicity is key.
Why Choose This Controller?
No complicated settings – just reliable, intuitive climate control in a stylish package.

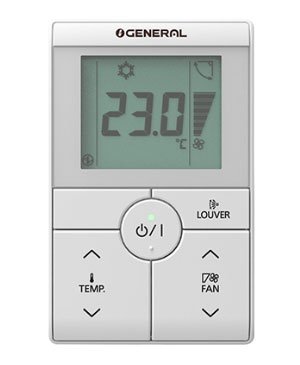

Simple Remote Controller – UTY-RHRG (Basic Model)
Key Features:
- Essential Climate Control: Simplified operation with core temperature adjustment functions (excludes operation mode selection)
- Multi-Unit Management: Controls up to 16 indoor units from one device
- Commercial-Grade Simplicity: Ideal for hotels, offices, and rental spaces requiring foolproof operation
- Sleek Minimalist Design: Discreet styling complements modern interiors
- User-Friendly Interface: Large LCD with white backlight for clear visibility day or night
- Quick Installation: Standard 2-wire connection for fast setup
Perfect For:
Spaces needing basic temperature regulation without advanced settings – guest rooms, lobbies, and shared office areas.
Why Choose This Basic Model?
The no-frills solution for reliable, maintenance-free climate control where simplicity matters most.

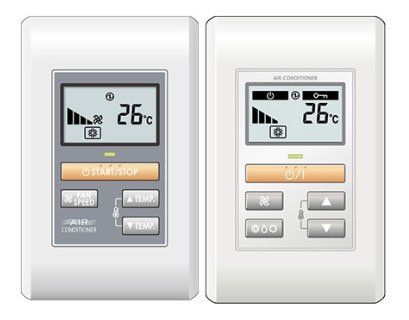

Simple Remote Controller – UTY-RSKG
Key Features:
- Essential Climate Control: Intuitive operation with basic temperature adjustment functions
- Multi-Unit Management: Controls up to 16 indoor units simultaneously
- Commercial Ready: Perfect for hotels, offices, and shared spaces with straightforward operation
- Modern Aesthetics: Clean, minimalist design complements any interior decor
- Clear Display: Large LCD screen with bright white backlight for 24/7 visibility
- Enhanced Wiring: 3-wire connection for stable and reliable performance
Ideal For:
Hospitality environments, corporate offices, and residential use where simplicity meets functionality.
Why Choose This Controller?
A perfect balance of user-friendly operation and dependable performance in a sleek package.
Simple Remote Controller – UTY-RHKG (Basic Temperature Control Model)
Key Features:
- Streamlined Temperature Control: Basic adjustment functions only (excludes operation mode selection)
- Multi-Zone Management: Central control for up to 16 indoor units
- Commercial Simplicity: Ideal for hotels, offices, and rental properties requiring foolproof operation
- Sleek Modern Design: Minimalist aesthetic blends with any interior style
- High-Visibility Display: Large LCD with white backlight for clear viewing in all lighting
- Stable Connection: Reliable 3-wire installation for consistent performance
Perfect For:
Spaces needing straightforward temperature regulation without advanced settings – guest rooms, lobbies, and shared workspaces.
Why Choose This Model?
The essential solution for no-nonsense climate control where basic functionality is key.
Simple Remote Controller – UTY-LNHGU
Key Features:
- 4 Daily Timers: Program different temperature settings throughout the day
- Multi-Unit Control: Manage up to 16 indoor units from one controller
- Simple Operation: User-friendly interface for hassle-free adjustments
- Sleek Design: Compact and modern to complement any space
Ideal For:
Homes, offices, and hotels needing basic scheduled temperature control.
Why Choose This Controller?
Easy programming meets reliable performance for comfortable spaces day and night.
Wireless Remote Controller
Infrared handheld remote (comes with wall-mounted units and cassette units). Allows convenient on/off, temperature set, fan speed, and mode control. Ideal for home or small office use, requiring line-of-sight to the unit.

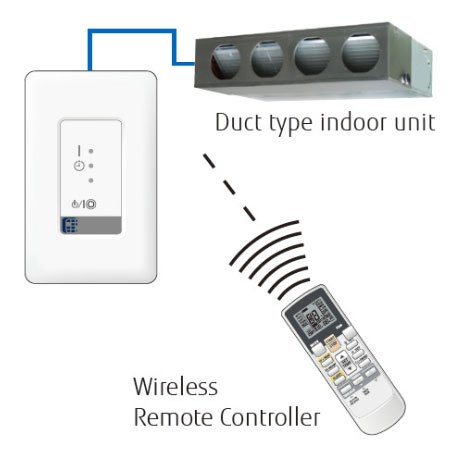

IR Receiver Unit – UTB-YWC
Key Features:
- Wireless Control: Enables duct-type indoor units* to work with wireless remotes
- Multi-Unit Operation: Controls up to 16 indoor units simultaneously
- Commercial Ready: Simple operation perfect for hotels and office buildings
- Universal Compatibility: Works with most duct units (excluding Large Airflow Duct models)
Ideal For:
Commercial spaces needing convenient wireless HVAC control.
Why Choose This Receiver?
Converts compatible duct units to wireless operation with reliable performance.

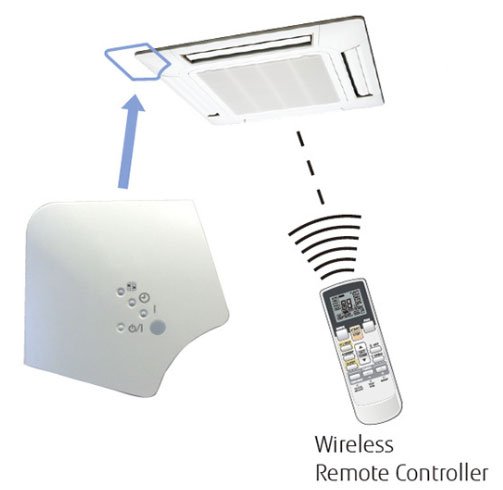

IR Receiver Unit – UTY-LRHGB1
Key Features:
- Wireless Control: Enables cassette-type indoor units to work with wireless remote controllers
- Simple Installation: Easy setup for instant wireless functionality
- Commercial & Residential Use: Ideal for both office buildings and homes
Ideal For:
Spaces with cassette AC units needing convenient wireless control.
Why Choose This Receiver?
Upgrade your cassette AC system with reliable wireless operation.
IR Receiver Unit – UTY-LRHGB1
Key Features:
- Wireless Control: Enables cassette-type indoor units to work with wireless remote controllers
- Simple Installation: Easy setup for instant wireless functionality
- Commercial & Residential Use: Ideal for both office buildings and homes
Ideal For:
Spaces with cassette AC units needing convenient wireless control.
Why Choose This Receiver?

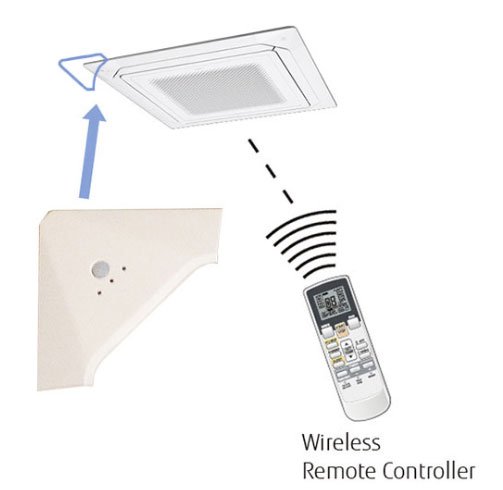

Upgrade your cassette AC system with reliable wireless operation.
Compact Touch Panel Wired Controller
A premium compact touchscreen wall controller that provides an intuitive UI, possibly referencing models like a touch LCD controller which can control a group of units.
Technical Advantages:
- Dual-mode operation (wired base + wireless remote capability)
- Space-efficient form factor (fits standard 86x86mm boxes)
- Intuitive backlit interface
Compact Wired Remote Controller – UTY-RCRGZ1
Key Features:
- Sleek European Design: Modern styling fits any interior decor
- Dual Control Options: Works with both wired and wireless remote systems
- Easy Installation: Fits standard European junction boxes (86x86mm)
- Simple 2-Wire Setup: Quick installation with minimal wiring
Ideal For:
- Residential homes
- Boutique offices
- Hotel guest rooms
Why Choose This Controller?
Combines elegant design with flexible control options for seamless climate management.
Installation Note:
Compatible with standard European electrical boxes – verify your wall box dimensions.
Compact Wired Remote Controller – UTY-RCRGZ1K
Key Features:
- Sleek European Design: Modern minimalist styling complements contemporary interiors
- Dual Control Flexibility: Operates with both wired connections and wireless remotes
- Quick Installation: Fits standard European junction boxes (86x86mm) for easy retrofitting
- Simplified Wiring: 2-wire connection system reduces installation complexity
Ideal For:
- Modern apartments & smart homes
- Boutique hotels & office spaces
- Renovation projects requiring space-saving solutions
Why Choose This Model?
Combines aesthetic appeal with versatile functionality in a compact, user-friendly package.
Installation Note:
Designed for European standard electrical boxes – check your wall box specifications.

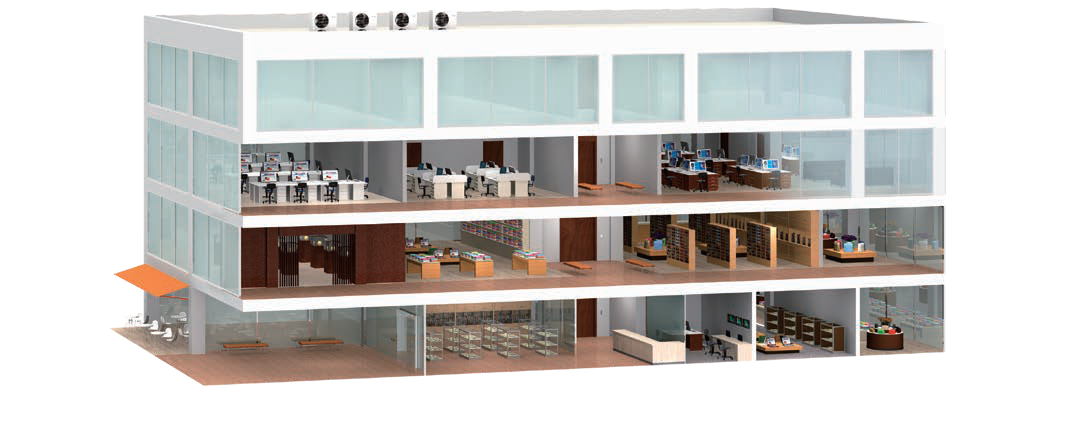

→ Centralized Control Systems
For buildings with many indoor units, O General provides central controllers to manage multiple AC units together

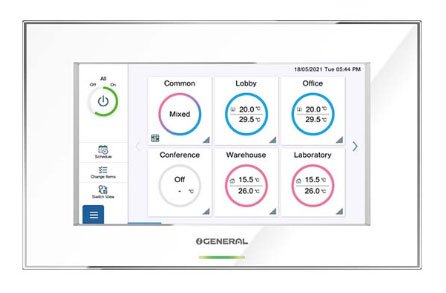

Central Touch Panel Controller (UTY-DCGGZ2)
A 7-inch color touchscreen panel that can control and monitor up to 100 indoor units on a single VRF network. It features an intuitive graphical interface (floor plan or zone view) for facilities managers to see the status of each unit (on/off, temperature, mode) at a glance. Functions include setting temperatures in batches, scheduling operations for different zones, and viewing error alarms. Multi-language support (up to 12 languages) is built in for international use.
Key Features:
- 7.0-inch TFT Color Touchscreen: Enjoy smooth, intuitive control with a responsive touch panel.
- Control Up to 100 Indoor Units: Manage and monitor multiple units individually from one central hub.
- Real-Time Temperature Display: View readings from both indoor unit sensors and the remote controller.
- Smart Grouping & Custom Naming: Organize up to 50 remote controller groups and rename them for easy access.
- Multilingual Support: Switch seamlessly between 12 languages, including English, Spanish, French, German, and more.
- User-Friendly Interface: All functions accessible from the top screen with pop-up guidance for quick navigation.
Ideal For:
Commercial HVAC systems, smart building management, and large-scale climate control setups.
Why Choose This Remote?
Reliable, easy-to-use, and designed for efficient multi-unit control, making temperature management effortless.
System Controller Lite (UTY-ALGXZ1)
A scaled-down central controller suitable for small to medium buildings. It can manage one VRF network (up to 400 indoor units) and provides essential central control functions like grouping units, simple scheduling, and energy management options. This is cost-effective for mid-size installations where the full features of the advanced controller are not required.
Key Features:
- Compact & Efficient Control: Perfect for managing small to medium-sized buildings with essential air conditioning functions.
- Large-Scale Capacity: Controls up to 1 VRF network system, 400 indoor units, and 100 outdoor units.
- Precision Air Conditioning Management: Maintains optimal climate control with advanced monitoring and adjustment.
- Expandable Software Options: Enhance functionality with optional management software for greater flexibility.
Ideal For:
Small offices, retail spaces, and mid-sized commercial buildings needing reliable HVAC control.
Why Choose This Controller?
Simple yet powerful, streamlines air conditioning management without unnecessary complexity.

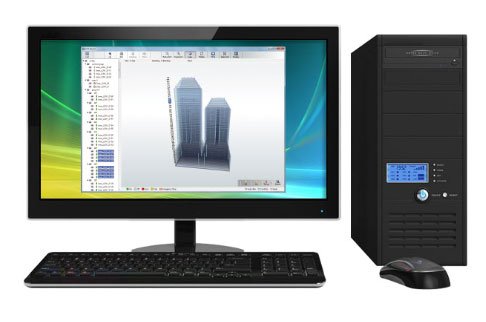

Advanced System Controller (UTY-APGXZ1)
A full-featured centralized control system for large buildings or multi-building complexes. It can oversee up to 4 VRF networks, that’s 1600 indoor units and 400 outdoor units in total from one platform. This controller (often PC/server-based with software) offers integrated monitoring, detailed energy usage tracking, billing allocation, and robust scheduling and management reports. It’s ideal for campuses, hospitals, or high-rises with numerous units.
Key Features:
- Advanced VRF System Control: Seamlessly monitors and manages HVAC networks from small to large-scale buildings.
- High-Capacity Management: Controls up to 4 VRF networks, 1,600 indoor units, and 400 outdoor units.
- Smart Energy & Cost Savings: Features electricity charge calculation, energy-saving modes, and schedule management.
- Centralized Remote Control: Allows unified system adjustments from a single interface.
- Precision Climate Control: Delivers accurate temperature regulation for optimal comfort and efficiency.
Ideal For:
Large commercial buildings, office complexes, and facilities requiring advanced HVAC automation.
Why Choose This Controller?
A powerful, all-in-one solution for intelligent building management, balancing performance, energy savings, and user control.
→ BMS and Network Integration
O General VRF can integrate into Building Management Systems (BMS) via optional adaptors
BACnet® Gateway interface: A BACnet® Gateway interface is available for large-scale integration, allowing a building’s central BMS to monitor/control the VRF system. For example, one BACnet gateway can connect up to 4 VRF systems, that’s 1600 indoor units – into the BMS over an IP network. For smaller integrations, a hardware BACnet gateway device (UTY-VBGX) supports up to 128 indoor units on one BMS network
Web / PC Management Software: O General (Fujitsu General) also provides PC-based software tools for remote management. Using a small network adapter (USB or LAN interface) and software, facility managers can visualize all units on a computer, change settings, and log performance data. This is often used for multi-site management – e.g., a property management company overseeing AC in several buildings can monitor all systems centrally over the internet.
A LONWORKS® Interface (UTY-VLGX) can similarly tie in up to 128 indoor units to a LonWorks building automation network, common in certain commercial buildings.
A MODBUS® Converter is offered (UTY-VMGX and others) to link the VRF system with MODBUS-based controllers, covering up to 128 units per converter. This is useful for industrial sites or when using PLC-based control.
Contact & Support
For further assistance with the VRF control systems or to explore additional controller options (such as centralized controllers or BMS integration adapters), please contact our support team or reach out to an authorized O General Distributor. We offer training and technical support for professional installers and facility managers to get the most out of our products. Whether you need help with initial setup, troubleshooting, or customizing control settings for your building, our experts are here to help.
Ready to upgrade your climate control? Get in touch with us today to discuss how the UTY-RNRGZ5 and our full range of VRF solutions can meet your HVAC needs. Enjoy the comfort, efficiency, and control that Fujitsu General’s VRF System Controllers provide and take the first step towards smarter building management.
Title: Design & Support Tools – VRF Software, Accessories & Training
Meta Description: Maximize your O General VRF system with our support tools. Use VRF design simulator software, access CAD/BIM data, and discover optional accessories (AHU kits, interfaces). Technical training and manuals available for professionals.
Discover Our Advanced Control Solutions
This section describes the key features briefly.
Smart Controls
Manage your air conditioning effortlessly with compact wired remote controllers.
Eco-Friendly Design
Optimize energy efficiency while maintaining a comfortable environment.
Centralized Management
Oversee multiple units seamlessly with intuitive central remote controllers.
Flexible Options
Choose from a variety of control solutions tailored to your needs.
O General UAE
VRF System Expert
The team provided excellent support and the VRF control system works flawlessly!
Discover Advanced Solutions
Take the first step toward efficient and eco-friendly air conditioning control by joining us today.
